What is the mechanism of nonionic dispersing in a liquid system?
Dec 23, 2025
What is the mechanism of nonionic dispersing in a liquid system?
As a supplier of Nonionic Dispersing products, I've witnessed firsthand the growing demand for effective dispersion solutions across various industries. Nonionic dispersing agents play a crucial role in many applications, from paints and coatings to pharmaceuticals and food products. In this blog post, I'll delve into the mechanism of nonionic dispersing in a liquid system, exploring how these agents work and why they are so important.
Understanding Nonionic Dispersing Agents
Nonionic dispersing agents are a type of surfactant that do not carry an electric charge in solution. Unlike ionic surfactants, which have either a positive or negative charge, nonionic surfactants are electrically neutral. This property makes them particularly useful in a wide range of applications, as they can interact with both polar and non - polar substances without being affected by the ionic strength of the solution.
The most common types of nonionic dispersing agents include ethoxylated alcohols, ethoxylated alkylphenols, and ethoxylated fatty acids. These agents are typically composed of a hydrophobic (water - repelling) tail and a hydrophilic (water - attracting) head. The hydrophobic tail is usually a long hydrocarbon chain, while the hydrophilic head is often a polyether group, such as polyethylene glycol.
The Mechanism of Nonionic Dispersing
The mechanism of nonionic dispersing in a liquid system can be broken down into several key steps:
Adsorption
The first step in the nonionic dispersing process is adsorption. When a nonionic dispersing agent is added to a liquid system containing solid particles, the hydrophobic tails of the surfactant molecules adsorb onto the surface of the solid particles. This occurs because the hydrophobic tails have an affinity for the non - polar surfaces of the particles. For example, in a paint system, the nonionic dispersant's hydrophobic tail will attach to the surface of pigment particles.
As the hydrophobic tails adsorb onto the particle surface, the hydrophilic heads of the surfactant molecules extend into the liquid phase. This creates a layer of surfactant molecules around the solid particles, which is known as the adsorption layer.
Steric Stabilization
Once the nonionic dispersing agent has adsorbed onto the surface of the solid particles, it provides steric stabilization. The hydrophilic heads of the surfactant molecules form a physical barrier around the particles. This barrier prevents the particles from coming into close contact with each other and aggregating.
The thickness of the steric barrier is determined by the length of the hydrophilic chains of the nonionic dispersant. Longer hydrophilic chains result in a thicker barrier, which provides better steric stabilization. For instance, in a pharmaceutical suspension, a nonionic dispersant with long hydrophilic chains can keep the drug particles well - dispersed, preventing them from settling out of the solution.
Reduction of Surface Tension
Nonionic dispersing agents also reduce the surface tension of the liquid system. Surface tension is the force that causes the surface of a liquid to contract. When a nonionic surfactant is added to a liquid, it accumulates at the liquid - air or liquid - solid interface. The surfactant molecules disrupt the cohesive forces between the liquid molecules at the interface, reducing the surface tension.
Lowering the surface tension allows the liquid to wet the solid particles more effectively. In a coating application, for example, a nonionic dispersant can help the paint to spread evenly over the surface, improving the adhesion and appearance of the coating.
Factors Affecting Nonionic Dispersing
Several factors can affect the performance of nonionic dispersing agents in a liquid system:
Temperature
Temperature can have a significant impact on the behavior of nonionic dispersants. As the temperature increases, the solubility of nonionic surfactants in water generally decreases. This is because the hydrogen bonds between the hydrophilic groups of the surfactant and water molecules are weakened at higher temperatures.
At a certain temperature, known as the cloud point, the nonionic surfactant will start to phase - separate from the water. Above the cloud point, the nonionic dispersant may lose its ability to stabilize the solid particles, leading to aggregation. Therefore, it is important to choose a nonionic dispersant with a cloud point that is appropriate for the operating temperature of the application.
pH
The pH of the liquid system can also affect the performance of nonionic dispersants. Although nonionic surfactants are electrically neutral, changes in pH can influence the interactions between the surfactant and the solid particles. For example, in an acidic or basic environment, the surface charge of the solid particles may change, which can affect the adsorption of the nonionic dispersant.
In some cases, extreme pH values can cause the hydrolysis of the nonionic dispersant, leading to a loss of its dispersing ability. Therefore, it is necessary to consider the pH range of the application when selecting a nonionic dispersant.
Concentration
The concentration of the nonionic dispersing agent is another important factor. At low concentrations, the nonionic dispersant may not be able to fully cover the surface of the solid particles, resulting in poor dispersion. As the concentration increases, more surfactant molecules are available to adsorb onto the particle surface, improving the dispersion.
However, there is an optimal concentration for each nonionic dispersant. Beyond this concentration, adding more dispersant may not provide any additional benefits and can even lead to negative effects, such as increased viscosity or foaming in the liquid system.
Applications of Nonionic Dispersing Agents
Nonionic dispersing agents are widely used in various industries:
Paints and Coatings

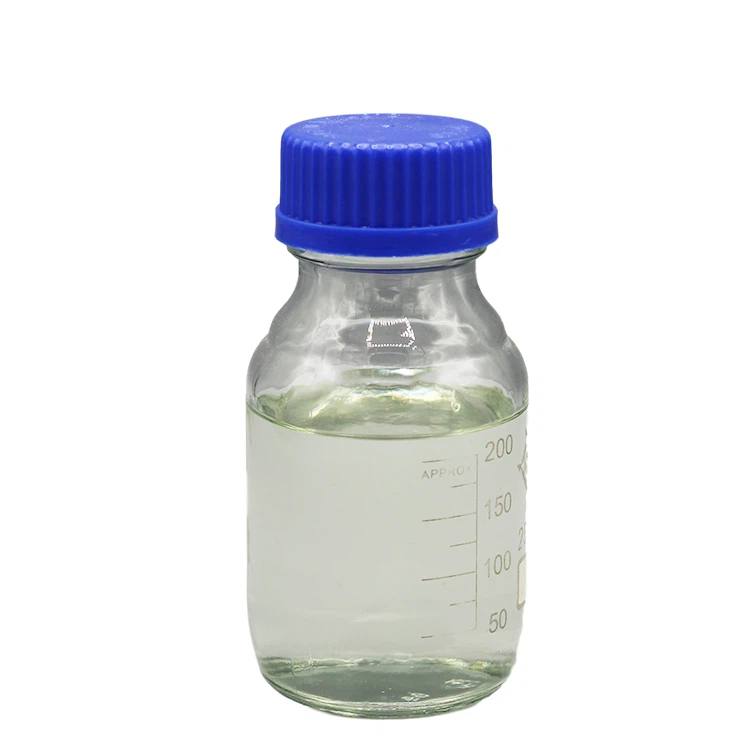

In the paints and coatings industry, nonionic dispersants are used to disperse pigments and fillers. They help to improve the color development, gloss, and stability of the paint. For example, Ethoxylated Propoxylated 2 4 7 9 Tetramethyl 5 Decyne 4 7 Diol can be used as a nonionic dispersant in water - based paints to ensure that the pigment particles are evenly distributed, resulting in a smooth and uniform finish.
Pharmaceuticals
In the pharmaceutical industry, nonionic dispersants are used to formulate suspensions, emulsions, and tablets. They help to improve the solubility and bioavailability of drugs. Nonionic dispersants can keep the drug particles dispersed in the liquid medium, ensuring that the drug is delivered evenly to the body.
Food Industry
In the food industry, nonionic dispersants are used to emulsify oils and fats, stabilize foams, and disperse solids. For example, they can be used in salad dressings to prevent the separation of oil and water phases, and in ice cream to improve the texture and prevent the formation of ice crystals.
Why Choose Our Nonionic Dispersing Products
As a leading supplier of Nonionic Dispersing products, we offer a wide range of high - quality nonionic dispersants. Our products are carefully formulated to provide excellent dispersion performance in various liquid systems.
We use advanced manufacturing processes to ensure the consistency and purity of our nonionic dispersants. Our research and development team is constantly working to improve the performance of our products and develop new solutions to meet the evolving needs of our customers.
In addition, we offer comprehensive technical support to our customers. Our experts can help you select the most suitable nonionic dispersant for your specific application and provide guidance on its proper use.
Contact Us for Procurement
If you are interested in our nonionic dispersing products or have any questions about nonionic dispersing in a liquid system, we encourage you to contact us. Our sales team is ready to assist you with your procurement needs and discuss how our products can benefit your business. Whether you are in the paints and coatings, pharmaceuticals, or food industry, we have the right nonionic dispersing solution for you.
References
- Rosen, M. J., & Kunjappu, J. T. (2012). Surfactants and Interfacial Phenomena. John Wiley & Sons.
- Hunter, R. J. (2001). Foundations of Colloid Science. Oxford University Press.
- Myers, D. (2006). Surfactant Science and Technology. John Wiley & Sons.
